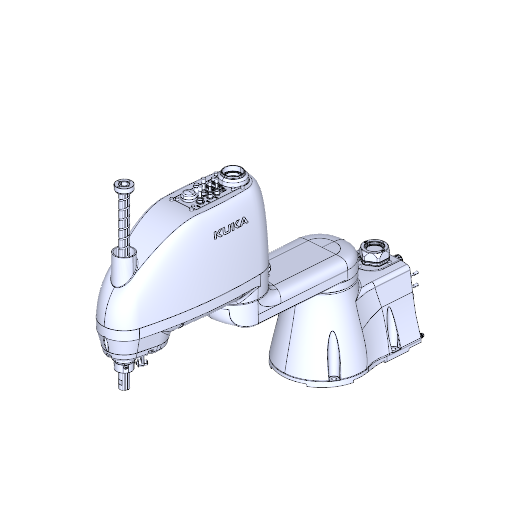

KUKA KR 6 R500 Z200-2
Specifications
Type
SCARA
Brand
Kuka
Model
KR 6 R500 Z200-2
Axes
4
Payload
6 kg
Reach
500 mm
Repeatability
0.02 mm
Weight
20 kg
Maximum speed
2000 °/s
Speed at rated payload
2000 °/s
IP rating
IP20
Operating temperature
5 to 40 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 1-phase, 50/60 Hz
Power consumption
2 kVA
Certifications
CE; UL; CSA
Cleanroom class
Standard (non-cleanroom) version; Cleanroom variants ISO 5 available for certain payload/reach classes but not standard on KR 6 R500 Z200-2
Safety functions
ISO 10218-1; ISO 13849-1; Category 3 / Performance Level d
Communication interfaces
Ethernet; EtherCAT; Digital IO 16-in / 16-out; Safe inputs/outputs including external E-STOP, operator protection
The SCARA KUKA KR 6 R500 Z200-2 is a highly efficient 4-axis robotic arm designed for industrial automation with a payload capacity of 6 kg and a reach of 500 mm. Featuring exceptional repeatability of 0.02 mm and a maximum speed of 2000 °/s, this component is ideal for precise tasks in various applications. With its robust design, IP20 rating, and integration capabilities through Ethernet and EtherCAT, the KR 6 R500 Z200-2 ensures reliable performance in diverse environments while adhering to international safety standards.
