KUKA KR 6 R500 Z200 1 2CS
Specifications
Type
SCARA
Brand
Kuka
Model
KR 6 R500 Z200 1 2CS
Axes
4
Payload
6 kg
Reach
500 mm
Repeatability
0.02 mm
Weight
20 kg
Maximum speed
2000 °/s
Speed at rated payload
420 °/s (Axis 1)
IP rating
IP20
Operating temperature
5 to 40 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V single-phase, 50-60 Hz
Power consumption
1.3 kVA

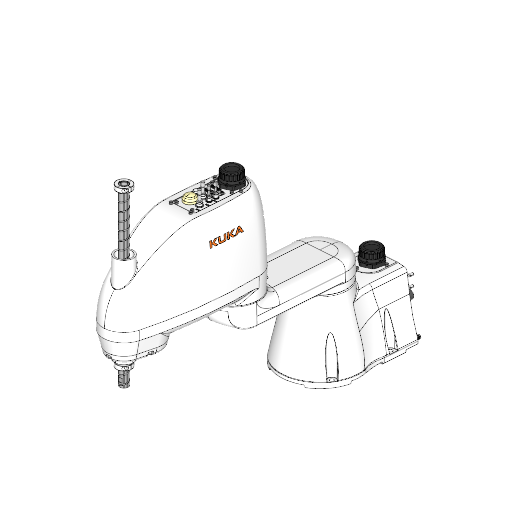

The SCARA KUKA KR 6 R500 Z200 1 2CS is a highly efficient industrial automation component designed for precision and reliability. With four axes and a payload capacity of 6 kg, it features an impressive reach of 500 mm and a repeatability of just 0.02 mm, making it ideal for various applications. Operating within a temperature range of 5 to 40 °C and equipped with a KR C5 micro controller, this compact 20 kg robotic arm delivers maximum speeds of up to 2000 °/s, ensuring optimal performance in demanding environments.
