Industrial Robot KUKA KR 30 R2100 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 30 R2100

Axes

Payload

30 kg

Reach

2100 mm

Repeatability

0.050 mm

Weight

533 kg

IP rating

IP65 standard, IP67 optional (inline wrist)

Mounting orientation

Floor, ceiling, wall, desired angle

Controller

KR C5 (also available KR C4 in some variants)

Tool flange

Mounting surface hole pattern R300x400

Certifications

Cleanroom class

Class 5 (at 40% override, Class 5 at 80% override)

Communication interfaces

PROFIBUS, PROFINET, Ethernet/IP, DeviceNet, I/O expansion, image processing, conveyor belt synchronisation, safety control

The KUKA KR 30 R2100 is a highly advanced industrial robot featuring six axes, designed to handle a payload of up to 30 kg with a reach of 2100 mm. With a repeatability of 0.050 mm, this robust 533 kg robot meets IP65 standards, with an optional IP67 rating for its inline wrist, making it suitable for cleanroom environments up to Class 5. It offers versatile mounting options and is equipped with a KR C5 controller, supporting a wide range of communication interfaces including PROFIBUS and PROFINET for seamless integration into automated systems.

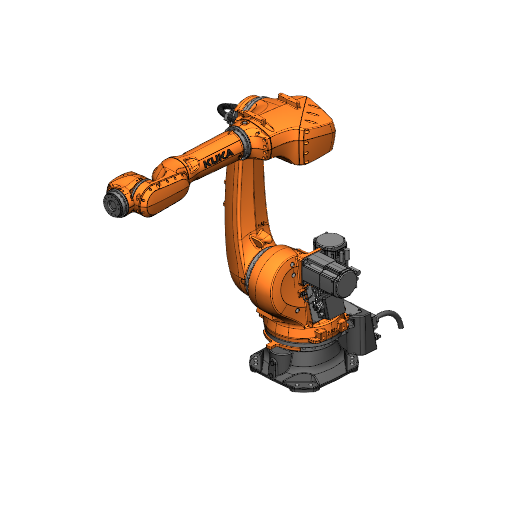

3D View

What are the technology applications of KR 30 R2100?

KUKA KR 30 R2100 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 30 R2100: Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 30 R2100 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 30 R2100 or request a quote, please contact the manufacturer or an authorized local supplier.
