Industrial Robot KUKA KR 5 arc Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 5 arc

Axes

Payload

5 kg

Reach

1411 mm

Repeatability

0.040 mm

Weight

127 kg

Maximum speed

721 °/s

Speed at rated payload

721 °/s

IP rating

IP 54, IP 65 (in-line wrist version)

Operating temperature

-10 °C to +55 °C

Mounting orientation

Floor, Ceiling, Inverted

Controller

KR C2 edition 2005

Power supply

3-phase AC, 380-480 VAC (controller power supply)

Power consumption

7.3 kVA

Tool flange

Standard robot wrist, same flange and interface for wire feeding

Certifications

Meets industrial robot safety standards (e.g. ISO 10218-1), CE; specific variants may have additional certifications

Safety functions

Comprehensive safety concept including Safe Robot Technology, safety zoning, monitoring of workspace limits

Communication interfaces

Ethernet-based PC-technology with networked controllers; compatibility with fieldbus/real-time protocols (controller dependent)

The KUKA KR 5 arc is a versatile industrial robot designed for precise applications, featuring six axes with a payload capacity of 5 kg and a reach of 1411 mm. With a repeatability of 0.040 mm and a maximum speed of 721 °/s, it operates efficiently in a range of environments, supported by a robust KR C2 controller. Rated IP 54 and IP 65 in the in-line wrist version, this model is suitable for various mounting orientations, ensuring flexibility for diverse automation needs.

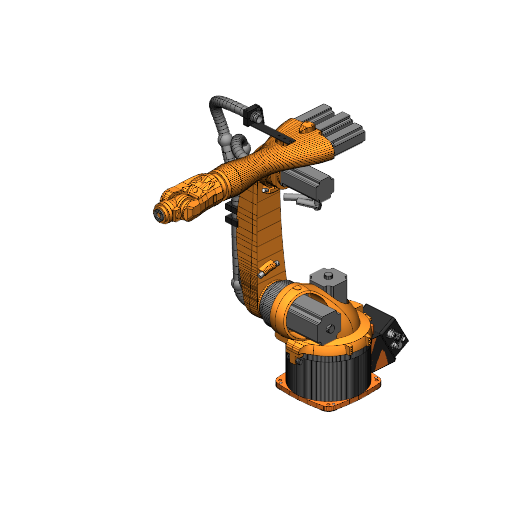

3D View

What are the technology applications of KR 5 arc?

KUKA KR 5 arc is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 5 arc: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
