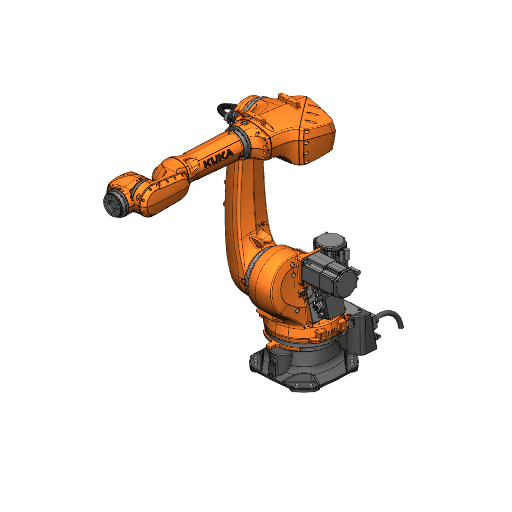

Industrial Robot KUKA KR 50 R2100 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 50 R2100

Axes

Payload

61 kg

Reach

2101 mm

Repeatability

0.050 mm

Weight

665 kg

Speed at rated payload

220 °/s

IP rating

IP65 (robot); IP65/IP67 (arm and wrist inline)

Mounting orientation

Floor; Ceiling; Wall; Desired angle

Controller

KR C5

Certifications

ISO 10218-1; ISO 13849-1 Category 3 / Performance Level d; UL / CSA; ESD requirements IEC 61340-5-1; ANSI/ESD S20.20

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Selecting the operating mode; Operator safety (physical safeguards); EMERGENCY STOP; Enabling device; External safe operational stop; External Safety STOP 1; External Safety STOP 2; Velocity monitoring in T1

Communication interfaces

Profinet / PROFIsafe; DeviceNet; Ethernet/IP; EtherCAT; Optional: Profibus, DeviceNet, Input/Output expansion

The KUKA KR 50 R2100 is a versatile industrial robot designed for a wide range of automation applications, featuring six axes and a payload capacity of 61 kg. With a reach of 2101 mm and a repeatability of 0.050 mm, this robust robot operates at impressive speeds, achieving up to 360°/s with a weight of 665 kg. It is equipped with the KR C5 controller, IP65 protection rating, and complies with ISO 14644-1 Class 5, making it an ideal choice for both cleanroom and industrial environments.

3D View

What are the technology applications of KR 50 R2100?

KUKA KR 50 R2100 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 50 R2100: Deburring, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
