Industrial Robot KUKA KR 6 R900 sixx Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 6 R900 sixx

Axes

Payload

6 kg

Reach

901 mm

Repeatability

0.030 mm

Weight

52 kg

Maximum speed

615 °/s

Speed at rated payload

360 °/s (Axis-1 & 3 at rated payload)

IP rating

IP54 (standard), IP67 (waterproof / WP variant), CR / EX variants may differ

Operating temperature

5 to 45 °C

Mounting orientation

Floor, Inverted (Ceiling), Angle / Wall

Controller

KR C4 smallsize-2 or KR C4 compact (standard); KR C5 micro in newer AGILUS series variants

Power supply

AC 200-230 V, single-phase, 50/60 Hz

Certifications

ISO 14644-1 (for cleanroom); Fraunhofer TESTED DEVICE® & CSM®; CE

Cleanroom class

ISO 2 (in cleanroom variant, KR AGILUS CR)

Safety functions

Safe robot functionality (Safe functions integrated via KUKA control technology)

Communication interfaces

Ethernet / Gigabit Ethernet; optional Ethernet/IP; fieldbus systems; RobotSensorInterface 3.3

The KUKA KR 6 R900 sixx is a versatile industrial robot designed for high precision tasks, featuring six axes and a payload capacity of 6 kg. With a reach of 901 mm and impressive repeatability of 0.030 mm, this robot operates efficiently at a maximum speed of 615 °/s, making it ideal for demanding applications. It offers multiple mounting orientations and operates within a temperature range of 5 to 45 °C, ensuring reliability in various environments while meeting IP54 standards for dust and water resistance.

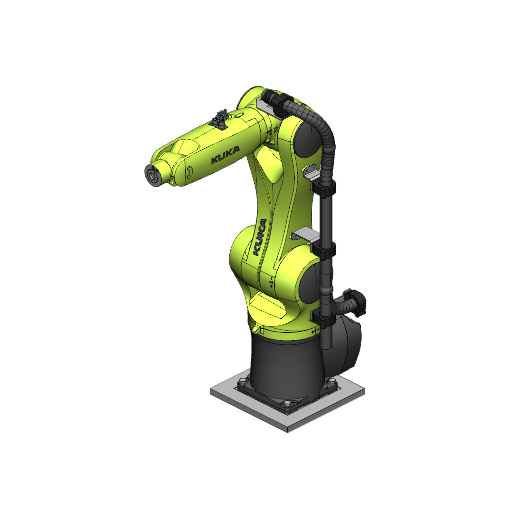

3D View

What are the technology applications of KR 6 R900 sixx?

KUKA KR 6 R900 sixx is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 6 R900 sixx: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
