Industrial Robot KUKA KR 90 R3100 extra HA Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 90 R3100 extra HA

Axes

Payload

90 kg

Reach

3095 mm

Repeatability

0.050 mm

Weight

1129 kg

Maximum speed

292 °/s

Speed at rated payload

123 °/s

IP rating

IP65

Operating temperature

10 to 55 °C

Mounting orientation

Floor

Controller

KR C4

The KUKA KR 90 R3100 extra HA is a high-performance industrial robot designed for precision automation tasks. With six axes and a payload capacity of 90 kg, it offers an impressive reach of 3095 mm and exceptional repeatability of 0.050 mm. This robust robot operates efficiently across a temperature range of 10 to 55 °C, features an IP65 rating for dust and water protection, and is equipped with a KR C4 controller for enhanced functional versatility.

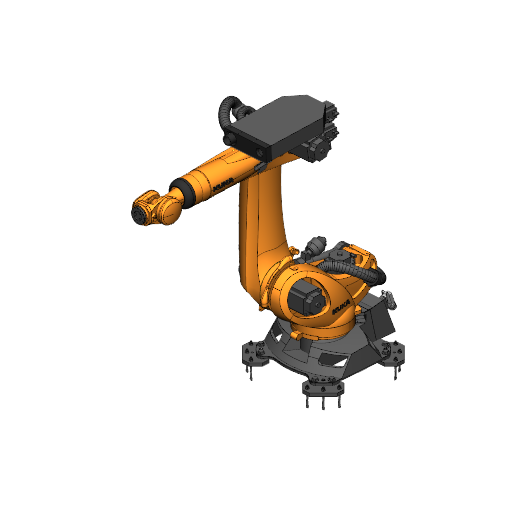

3D View

What are the technology applications of KR 90 R3100 extra HA?

KUKA KR 90 R3100 extra HA is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 90 R3100 extra HA: Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 90 R3100 extra HA applications programmed with ENCY Robot

Multiaxis cutting

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 90 R3100 extra HA or request a quote, please contact the manufacturer or an authorized local supplier.
