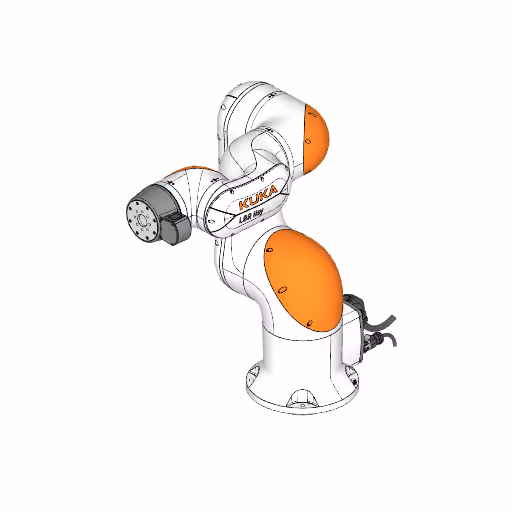

Cobot KUKA LBR iisy 15 R930 Specs and Applications

Specifications

Type

Cobot

Brand

Kuka

Model

LBR iisy 15 R930

Axes

Payload

15 kg

Reach

930 mm

Repeatability

0.05 mm

Weight

43.2 kg

Maximum speed

380 °/s

Speed at rated payload

380 °/s

IP rating

IP54

Mounting orientation

Floor; Ceiling; Wall; Desired angle

Controller

KR C5 micro

Power supply

AC 200-240V, 1-phase 50-60Hz (2-phase option with grounded neutral)

Power consumption

1.3 kVA

Tool flange

ISO 9409-1-50-7-M6

Certifications

ISO 10218-1; ISO 13849-1; UL / CSA (upcoming for some features)

Cleanroom class

Cleanroom model available (Cleanroom variant CR)

Safety functions

Category 3 / Performance Level d (EN ISO 13849-1)

Communication interfaces

Ethernet & EtherCAT ports; Digital IO 16-in / 16-out (NPN/PNP); Safe inputs/outputs (external E-STOP etc.)

The Cobot KUKA LBR iisy 15 R930 is a versatile 6-axis robotic arm designed for advanced industrial automation applications. With a payload capacity of 15 kg and an impressive reach of 930 mm, this cobot ensures high precision with a repeatability of 0.05 mm, making it ideal for a variety of tasks. Its robust features include a maximum speed of 380 °/s, an IP54 rating for dust and water protection, and various mounting options, as well as compliance with key safety standards, ensuring reliable and efficient performance in any environment.

3D View

What are the technology applications of LBR iisy 15 R930?

KUKA LBR iisy 15 R930 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA LBR iisy 15 R930: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
