KUKA iiwa7 R800 – MF Touch pneumatisch

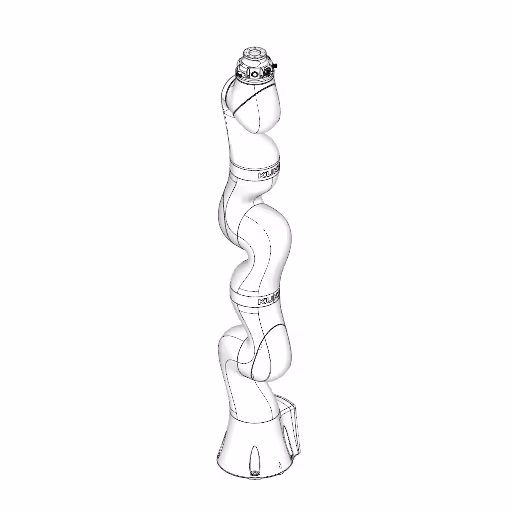

Cobot KUKA iiwa7 R800 - MF Touch pneumatisch
Specifications
Type
Cobot
Brand
Kuka
Model
iiwa7 R800 - MF Touch pneumatisch
Axes
7
Payload
7 kg
Reach
800 mm
Repeatability
0.1 mm
Weight
23.9 kg
Maximum speed
180 °/s
Speed at rated payload
180 °/s
IP rating
IP54
Operating temperature
5 °C to +45 °C
Mounting orientation
Floor, Ceiling, Wall
Controller
KUKA Sunrise Cabinet
Tool flange
DIN ISO 9409-1-50-7-M6
Certifications
CE, ISO 10218-1
Cleanroom class
Cleanroom variant meets ISO 2 (DIN EN ISO 14644-1) requirements
Safety functions
Category 3 / Performance Level d, torque sensors on all axes, collision detection and force/torque limiting

The KUKA iiwa7 R800 - MF Touch pneumatisch is a state-of-the-art collaborative robot (cobot) designed for versatility and precision in industrial automation. Boasting seven axes and a payload capacity of 7 kg, this robot provides an impressive reach of 800 mm with a repeatability of 0.1 mm, making it ideal for a wide range of applications. With a maximum speed of 180 °/s and operation in environments up to ISO 2 cleanroom standards, the KUKA iiwa7 R800 ensures optimal performance while adhering to strict safety and certification requirements.

What are the technology applications of iiwa7 R800 - MF Touch pneumatisch?

KUKA iiwa7 R800 – MF Touch pneumatisch is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA iiwa7 R800 – MF Touch pneumatisch: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
