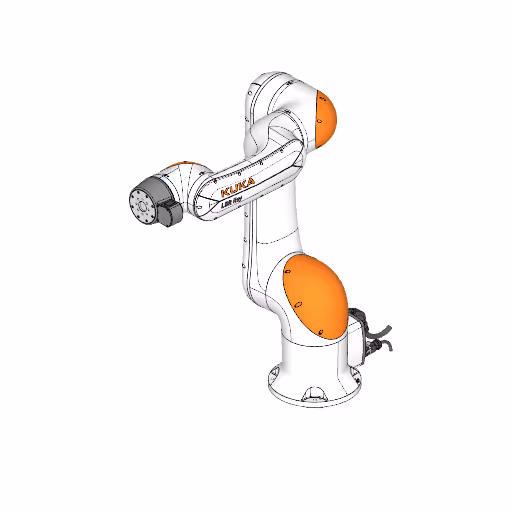

Cobot KUKA LBR iisy 11 R1300 Specs and Applications

Specifications

Type

Cobot

Brand

Kuka

Model

LBR iisy 11 R1300

Axes

Payload

11 kg

Reach

1300 mm

Repeatability

0.05 mm

Weight

46.3 kg

Maximum speed

430 °/s

Speed at rated payload

430 °/s

IP rating

IP54

Mounting orientation

Floor, Wall, Ceiling, Any angle

Controller

KR C5 micro

Power supply

AC 200-240 V, 1 phase 50/60 Hz / 2 phase

Tool flange

ISO standard flange for common end-of-arm tooling (ISO flange)

Certifications

Safety Category 3 and Performance Level d in accordance with EN ISO 13849-1; ESD requirements IEC 61340-5-1 / ANSI/ESD S20.20

Cleanroom class

Class 3 (ISO 14644-1) at 40% override (for the CR version)

Safety functions

Collision detection; process force measurement via joint torque sensors; supports human-robot collaboration (HRC)

Communication interfaces

EtherCAT, PROFINET, Ethernet/IP, EtherCAT Slave

The Cobot KUKA LBR iisy 11 R1300 is a versatile industrial automation solution featuring six axes and a payload capacity of 11 kg. With a reach of 1300 mm and high repeatability of 0.05 mm, this collaborative robot operates at a maximum speed of 430 °/s while ensuring safety with integrated collision detection and human-robot collaboration support. Designed for various mounting orientations and equipped with an ISO standard flange, the LBR iisy 11 R1300 meets stringent cleanroom standards and has multiple communication interfaces, making it an ideal choice for diverse manufacturing environments.

3D View

What are the technology applications of LBR iisy 11 R1300?

KUKA LBR iisy 11 R1300 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA LBR iisy 11 R1300: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA LBR iisy 11 R1300 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA LBR iisy 11 R1300 or request a quote, please contact the manufacturer or an authorized local supplier.
