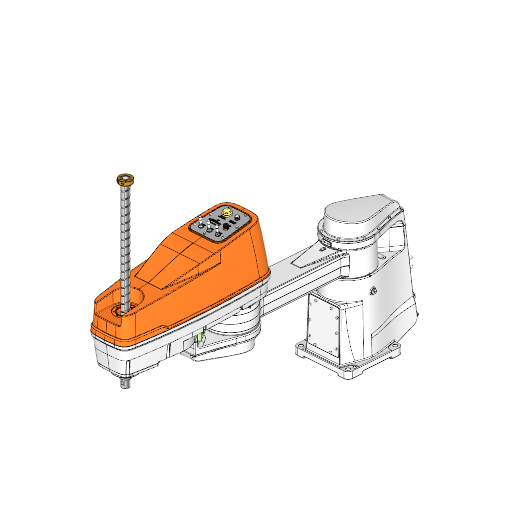

KUKA KR 12 R850 Z400 CS
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R850 Z400 CS
Axes
4
Payload
12 kg
Reach
850 mm
Repeatability
0.025 mm
Weight
51 kg
Maximum speed
2700 °/s
Speed at rated payload
2700 °/s for axis 4 at rated payload (other axes: axis1 400 °/s, axis2 660 °/s, linear axis3 1.1 m/s)
IP rating
IP20 (standard version)
Mounting orientation
Floor
Controller
KR C5 micro
Certifications
CE, UL, ESD‐compliant (IEC61340‐5-1; ANSI/ESD S20.20)
Cleanroom class
ISO Class 5 (standard cleanroom version available; for Standard version it is non‐cleanroom)
The SCARA KUKA KR 12 R850 Z400 CS is a highly efficient and versatile 4-axis robot designed for precision industrial automation tasks. With a payload capacity of 12 kg and a reach of 850 mm, it delivers exceptional repeatability at 0.025 mm and operates at impressive speeds of up to 2700 °/s, making it ideal for demanding applications. This model is compatible with the KR C5 micro controller, offers an IP20 rating, and is available in a cleanroom version compliant with ISO Class 5 standards, ensuring reliable performance in various operational environments.
