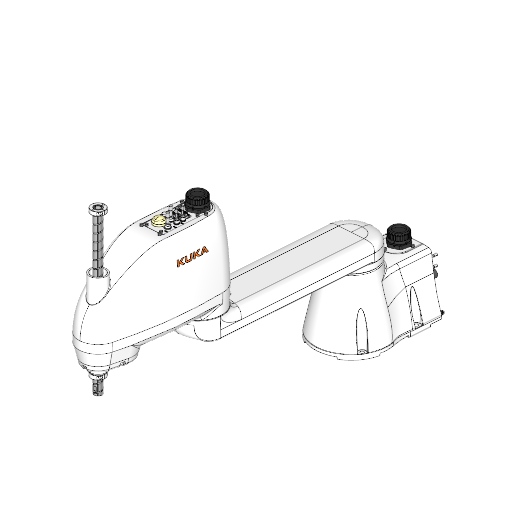

KUKA KR 6 R700 Z200 1 2 CS
Specifications
Type
SCARA
Brand
Kuka
Model
KR 6 R700 Z200 1 2 CS
Axes
4
Payload
6 kg
Reach
700 mm
Repeatability
0.02 mm
Weight
21 kg
Speed at rated payload
615 °/s
IP rating
IP65 / IP67
Mounting orientation
Floor, Ceiling, Wall, Desired angle
Controller
KR C4 compact
Power supply
AC 200-240V, 50/60Hz
Power consumption
2000 VA
Certifications
UL, CE
Cleanroom class
ISO 14644-1 Class 5
Safety functions
ISO 10218-1; ISO 13849-1 Category 3 / Performance Level d
Communication interfaces
Ethernet, EtherCAT, digital I/O, USB, display port
The SCARA KUKA KR 6 R700 Z200 1 2 CS is a highly efficient industrial automation robot designed with four axes and a payload capacity of 6 kg, providing a reach of 700 mm. With a remarkable repeatability of 0.02 mm and a weight of 21 kg, this robot operates at impressive speeds across its axes, making it suitable for various applications. Rated IP65/IP67 for environmental protection and compliant with ISO 14644-1 Class 5 cleanroom standards, it features a KR C4 compact controller and supports multiple communication interfaces for seamless integration into automated systems.
