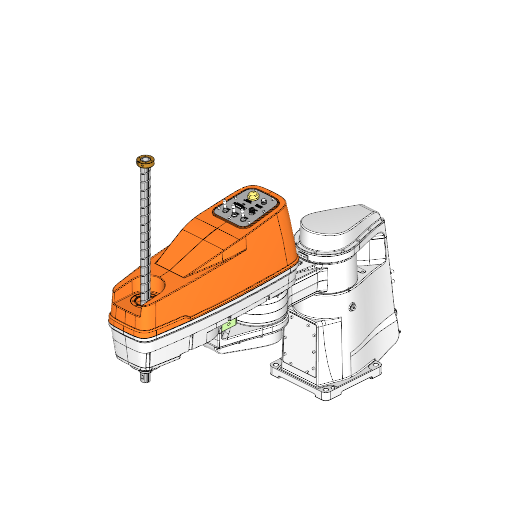

KUKA KR 12 R650 Z400 CS
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R650 Z400 CS
Axes
4
Payload
12 kg
Reach
650 mm
Repeatability
0.025 mm
Weight
49 kg
Maximum speed
2700 °/s
Speed at rated payload
450 °/s
IP rating
IP20
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
220 V single-phase AC
Power consumption
250 W
Tool flange
A4 mounting flange (standard SCARA connection as per KR 12 R650 Z400 series)
Certifications
CE
Cleanroom class
ISO 5 (when overridden / in CR versions)
Safety functions
Operator safety; Emergency-stop device; Enabling device; Velocity monitoring in T1; External safety stop; Safe operational stop; Category 3, Performance Level d (EN ISO 13849-1)
Communication interfaces
Ethernet, digital I/O, fieldbus standards supported by KR C5 micro
The SCARA KUKA KR 12 R650 Z400 CS is a high-performance industrial automation component featuring four axes and a payload capacity of 12 kg, making it ideal for a variety of assembly tasks. With a reach of 650 mm and an impressive repeatability of 0.025 mm, this robot ensures precision and efficiency in operations, while its maximum speed of 2700 °/s enhances productivity. Designed with safety in mind, it includes multiple safety functions and is compatible with various communication interfaces, ensuring seamless integration into existing systems.
