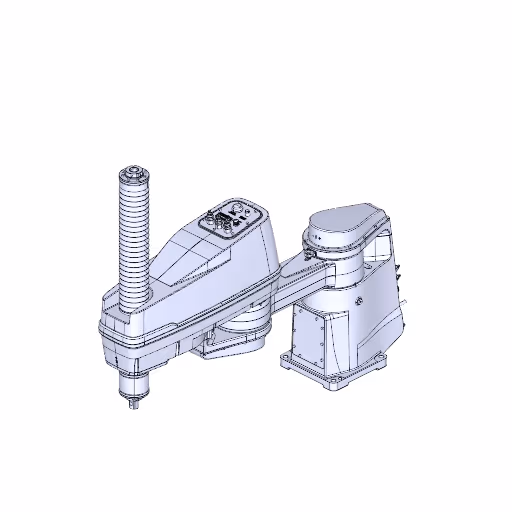

KUKA KR 12 R750 Z340 CR
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R750 Z340 CR
Axes
4
Payload
12 kg
Reach
750 mm
Repeatability
0.025 mm
Weight
52 kg
Maximum speed
2700 °/s (axis 4); other axes: J1 425 °/s, J2 655 °/s, J3 1100 mm/s
Speed at rated payload
1100 mm/s (axis 3 linear axis)
IP rating
IP54
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 50/60 Hz (single-phase)
Certifications
CE, EN ISO 10218-1:2011, EN ISO 12100:2010, EN ISO 13849-1:2015, EN ISO 13849-2:2012, EN ISO 13850:2015, UL 1740:2018, NFPA 79:2021
Cleanroom class
ISO 5
Safety functions
STOP 0 (Stop category 0), STOP 1 (Stop category 1), Emergency-Stop, Safe monitoring functions as required, ESD protection
Communication interfaces
Ethernet, EtherCAT, digital I/O (standard), safe inputs/outputs for external EMERGENCY STOP etc.
The SCARA KUKA KR 12 R750 Z340 CR is a highly efficient industrial automation component designed for precision assembly and handling tasks. Featuring four axes with a payload capacity of 12 kg and a reach of 750 mm, this robot offers a remarkable repeatability of 0.025 mm. Equipped with a KR C5 micro controller and designed for floor mounting, it operates at maximum speeds of 2700 °/s for axis 4 and 1100 mm/s at rated payload, while ensuring a cleanroom environment compliant with ISO 5 standards.
