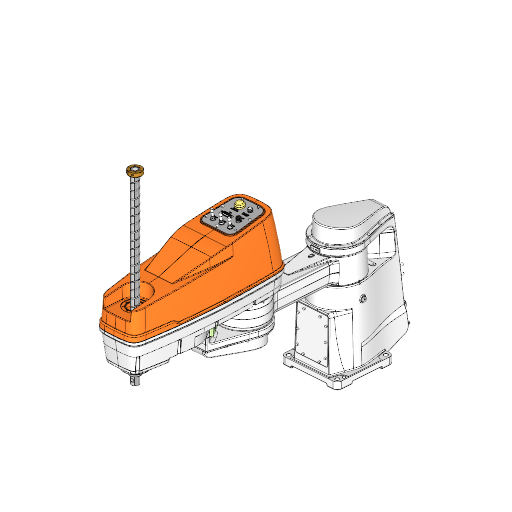

KUKA KR 12 R750 Z400 CS
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R750 Z400 CS
Axes
4
Payload
12 kg
Reach
750 mm
Repeatability
0.025 mm
Weight
50 kg
Maximum speed
2700 °/s
Speed at rated payload
2700 °/s
IP rating
IP20
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 1-phase, 50/60 Hz; external 24 V for IO / UPS
Power consumption
1.3 kVA
Tool flange
Connection A4 mounting flange (user‐designed; dimensions per manufacturer diagram)
Certifications
CE, EN ISO 10218-1, EN ISO 12100, EN ISO 13849-1, EN ISO 13850, UL 1740
Cleanroom class
ISO Class 5 (for cleanroom version variants)
Safety functions
Emergency stop (STOP 1 / DRS), Path-oriented braking; velocity monitoring in T1; external enabling device; safety-related inputs and outputs per EN ISO 13849-1, PL d
Communication interfaces
I/O extension interface (15-pin D-sub), Ethernet extension interface (8-pin M12), internal media supply for power, air, data
The SCARA KUKA KR 12 R750 Z400 CS is a versatile industrial automation component designed for precision and efficiency in a compact footprint. Featuring four axes, it offers a payload capacity of 12 kg and a reach of 750 mm, with an impressive repeatability of 0.025 mm and a maximum speed of 2700 °/s. This robot, equipped with the KR C5 micro controller and IP20 rating, is suitable for various applications and can operate smoothly in ISO Class 5 cleanroom environments, making it an ideal choice for industries requiring high reliability and safety.
