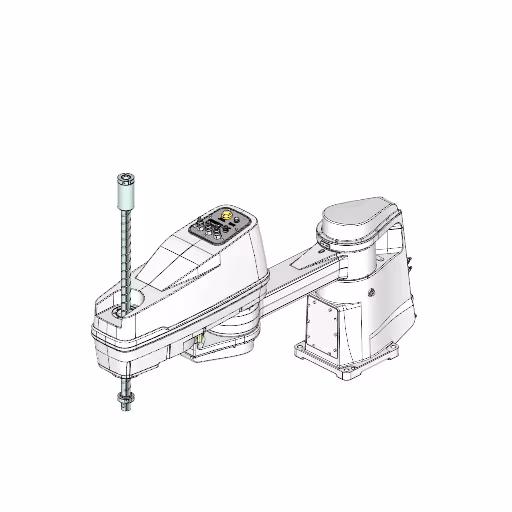

KUKA KR 12 R850 Z340 CS CR
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R850 Z340 CS CR
Axes
4
Payload
12 kg
Reach
850 mm
Repeatability
0.025 mm
Weight
53 kg
Maximum speed
2700 °/s (joint 4), others: J1 405°/s, J2 645°/s, J3 1.1 m/s
Speed at rated payload
1.1 m/s
IP rating
IP54
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 50-60 Hz [Electrical Supply]
Power consumption
1300 VA
Certifications
ISO 14644-1 Class 5, CE
Cleanroom class
Class 5 at 100% override
Safety functions
Certified toDIN EN ISO 14644-1 worldwide standards; includes ESD protection; meets CE requirements
Communication interfaces
Ethernet, digital I/O, fieldbus options via software
The SCARA KUKA KR 12 R850 Z340 CS CR is a versatile 4-axis robot designed for industrial automation applications, capable of handling a payload of up to 12 kg with a reach of 850 mm. With a remarkable repeatability of 0.025 mm and maximum speeds reaching 2700 °/s for joint 4, this robot ensures precise and efficient operation in various environments. Equipped with an IP54 rating and supporting Class 5 cleanroom standards, it is ideal for applications requiring high safety and cleanliness, making it a reliable choice for industries demanding precision and compliance with international safety standards.
