KUKA KR 12 R750 Z340 CS CR
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R750 Z340 CS CR
Axes
4
Payload
12 kg
Reach
750 mm
Repeatability
0.025 mm
Weight
52 kg
Maximum speed
2700 °/s
Speed at rated payload
425 °/s
IP rating
IP54
Operating temperature
5 to 40 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 1×200-240 V, 50-60 Hz
Power consumption
1.3 kVA
Certifications
CE
Cleanroom class
ISO 5
Safety functions
Category 3, Performance Level d according to EN ISO 13849-1
Communication interfaces
Ethernet, real-time Ethernet protocols, field bus interfaces such as Profinet/ProfiSafe, EtherCAT/FSoE, Ethernet/IP/CIP Safety

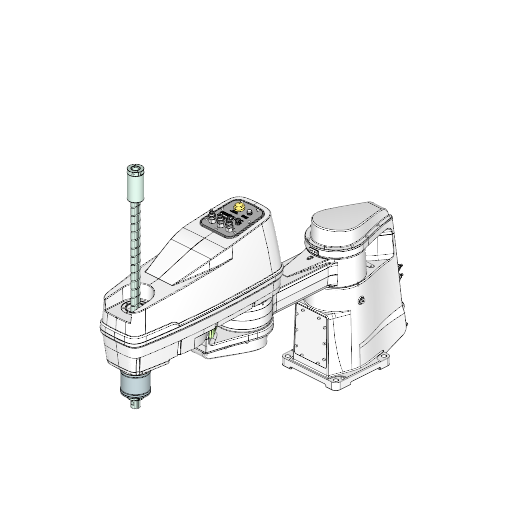

The SCARA KUKA KR 12 R750 Z340 CS CR is a highly efficient 4-axis industrial robot designed for precision automation tasks. With a payload capacity of 12 kg and a reach of 750 mm, this model offers exceptional repeatability of 0.025 mm and a maximum speed of 2700 °/s, making it ideal for high-speed applications. Equipped with the KR C5 micro controller and suitable for cleanroom environments with ISO 5 classification, it operates within a temperature range of 5 to 40 °C and features robust communication interfaces, ensuring seamless integration into various industrial systems.
