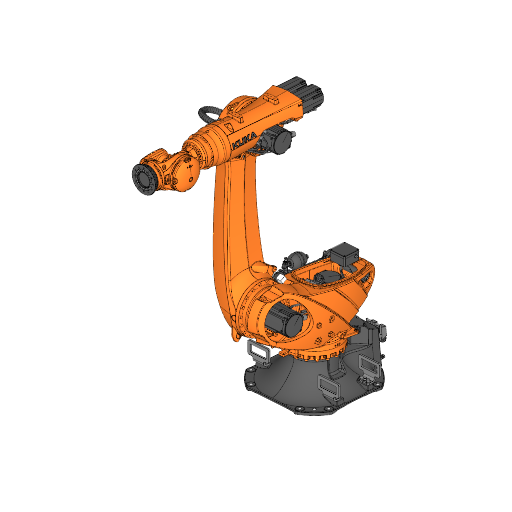

Industrial Robot KUKA KR 280 R3100-2 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 280 R3100-2

Axes

Payload

280 kg

Reach

3100 mm

Repeatability

0.08 mm

Weight

1687 kg

Maximum speed

163 °/s

Speed at rated payload

{"A1":103,"A2":97,"A3":104,"A4":90,"A5":100,"A6":163} °/s

IP rating

IP65, in-line wrist IP67

Mounting orientation

Floor, Ceiling, Wall, Desired angle

Controller

KR C5, KR C5 micro

Cleanroom class

Class 5 at 40% override, Class 5 at 80% override (ISO 14644-1)

The Industrial Robot KUKA KR 280 R3100-2 is a versatile 6-axis robotic solution designed for heavy-duty applications with a payload capacity of 280 kg and an impressive reach of 3100 mm. With a repeatability of 0.08 mm and a maximum speed of 163 °/s, this robot operates efficiently across various mounting orientations, including floor, ceiling, and wall. Engineered for high-performance tasks, it features a robust KR C5 controller and meets Cleanroom Class 5 standards, ensuring reliability in demanding environments.

3D View

What are the technology applications of KR 280 R3100-2?

KUKA KR 280 R3100-2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 280 R3100-2: Deburring, Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
