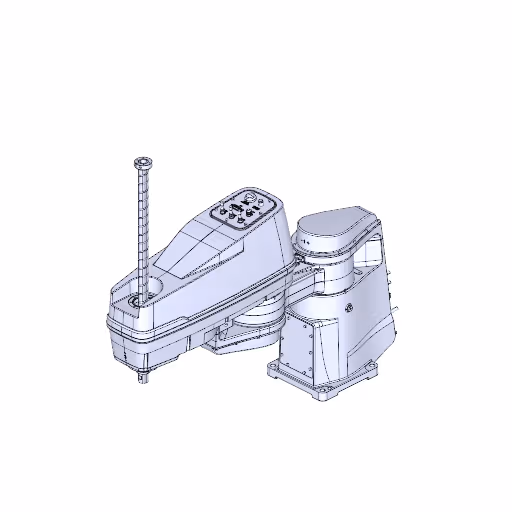

KUKA KR 12 R650 Z400
Specifications
Type
SCARA
Brand
Kuka
Model
KR 12 R650 Z400
Axes
4
Payload
12 kg
Reach
650 mm
Repeatability
0.025 mm
Weight
49 kg
Maximum speed
2700 °/s
Speed at rated payload
450 °/s
IP rating
IP20
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 50/60 Hz
Power consumption
250 W
Certifications
CE, EN ISO 10218-1, EN ISO 13849-1 PL d / Category 3, UL
Cleanroom class
Class 5 (ISO 14644-1) at 100% override
Safety functions
Operator safety, EMERGENCY STOP (local & external), Enabling device, Speed monitoring (T1), Safe Operational Stop, Safety STOP 0, STOP 1, STOP 2
Communication interfaces
Ethernet, EtherCAT, Profinet (with PROFIsafe), Ethernet/IP (CIP Safety planned), Digital IO (16 in / 16 out), Safe Inputs/Outputs
The SCARA KUKA KR 12 R650 Z400 is a highly efficient industrial automation component designed for precision tasks. With four axes, a payload capacity of 12 kg, and a reach of 650 mm, this robot offers exceptional repeatability of 0.025 mm and a maximum speed of 2700 °/s. Equipped with advanced safety features and communication interfaces, this robust unit operates at an IP20 rating and is ideal for cleanroom applications, achieving Class 5 status under ISO 14644-1 standards, making it a reliable choice for various manufacturing environments.
